280M Hydraulic Diesel Drilling Rig Fast With 40-70r/Min Rated Speed
Product Description
The RCF280C drilling rig can drill up to 280 meters deep. It can work seamlessly with an air compressor or a mud pump to ensure maximum efficiency under any field conditions. With a torque of up to 9,000 N/M, the equipment can easily operate in various soil layers, especially rock layers. The RCF280C water well drilling rig is deeply favored by European customers for its excellent quality.
Technical Parameters
| Model | RCF280C |
| Bore diameter(Hammer) | 100-350mm |
| Bore depth | 280m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | 89mm/102mm |
| Pipe length | 3m/6m |
| Lifting force | 18T |
| Lifting speed | 3m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 30m/min |
| Fast feeding speed | 50m/min |
| Max torque of the rotary | 7000-9000Nm |
| Rotary speed | 40-70r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 450L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4100×1900×2600mm |
| Weight | 7000Kg |
| Diesel engine | 70KW Yuchai engine |
Machine Advantages
1. The rig combines rotary mud drilling and pneumatic impact drilling. The high-performance mechanical top propulsion system has a speed of up to 901 rpm and a maximum torque of 9,000 Nm. The rig can intelligently adjust the drilling mode according to the characteristics of different formations: when operating in soft soil layers, it uses coreless drill bits or roller bits for mud circulation drilling; when operating in hard rock layers, it can perform high-speed rotary cutting and switch to compressed air-driven down-the-hole hammers for impact drilling. In extremely challenging operating conditions such as loose gravel layers, the innovative synchronous string tracking drilling system can effectively maintain the stability of the wellbore.
2. The rig is equipped with a 3,500 mm dual-speed feed mechanism, which can optimize the feed speed according to the hardness of different rock formations and significantly improve the total drilling time. The unique dual-mode hydraulic drive system uses intelligent split flow control technology. The single-pump energy-saving mode is enabled during drilling, and it automatically switches to dual-pump parallel oil supply during jacking operations to achieve the best balance between energy consumption and efficiency. Practice has proved that this design can reduce ineffective energy consumption by 40% and reduce auxiliary operation time by 35%.
3. The drive system adopts a fully mechanical transmission design, and the energy conversion efficiency is twice that of traditional hydraulic drilling rigs. Combined with the modular drilling tool quick-change system, it not only solves common construction problems such as drill jamming and overheating, but also improves the overall drilling efficiency by more than 50%. The three key technological innovations of composite drilling mode, intelligent hydraulic distribution, and efficient mechanical transmission simultaneously optimize the energy consumption and operating efficiency of the whole machine.

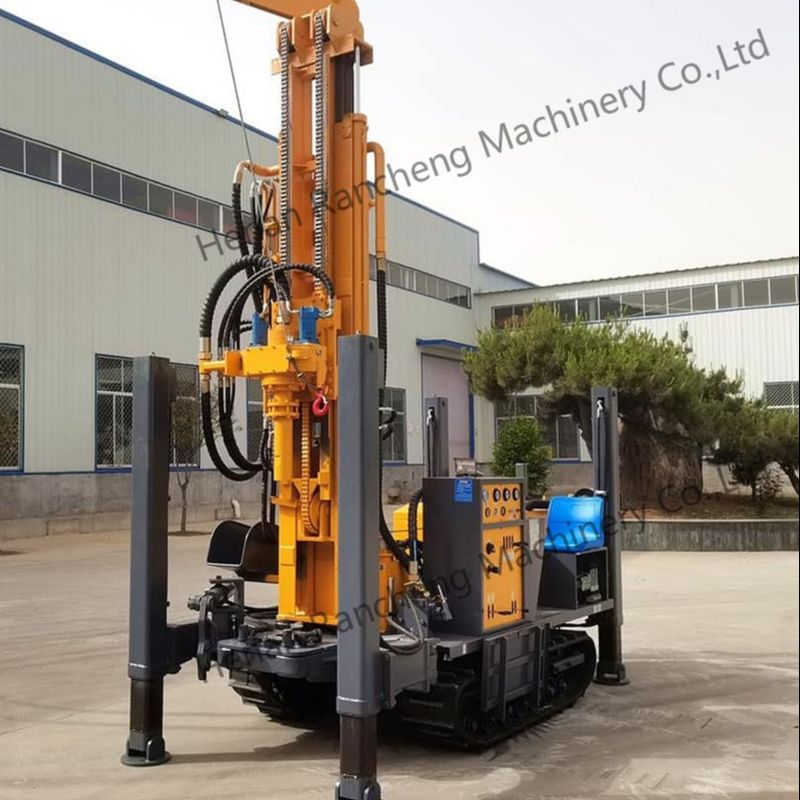

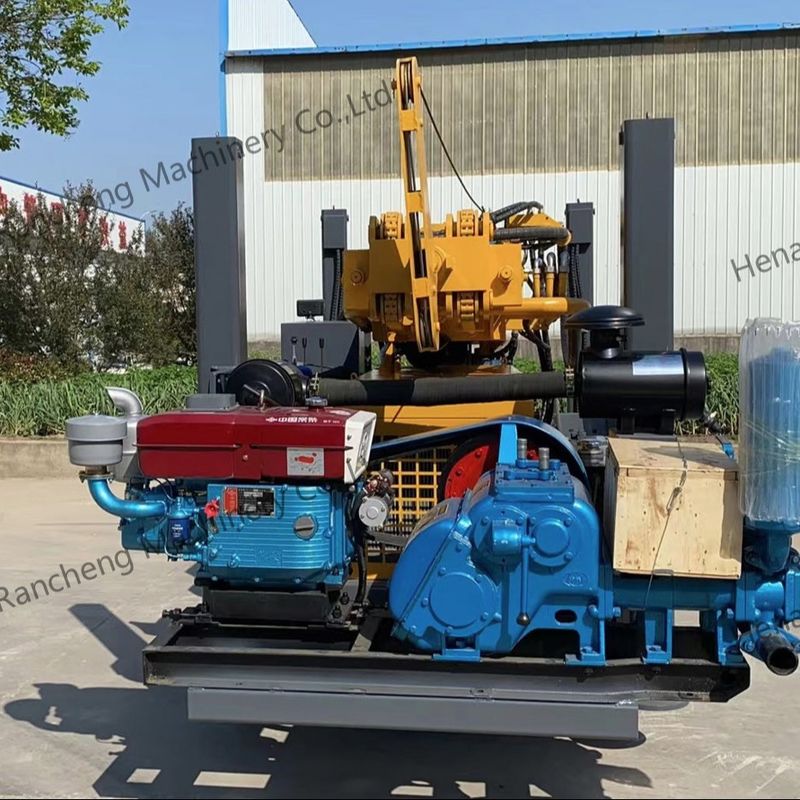

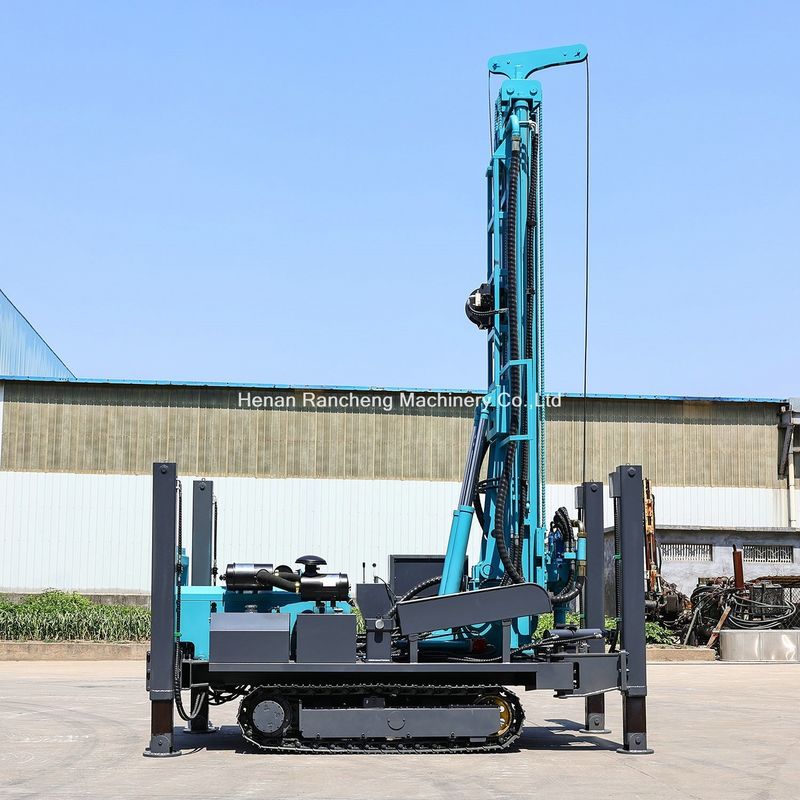

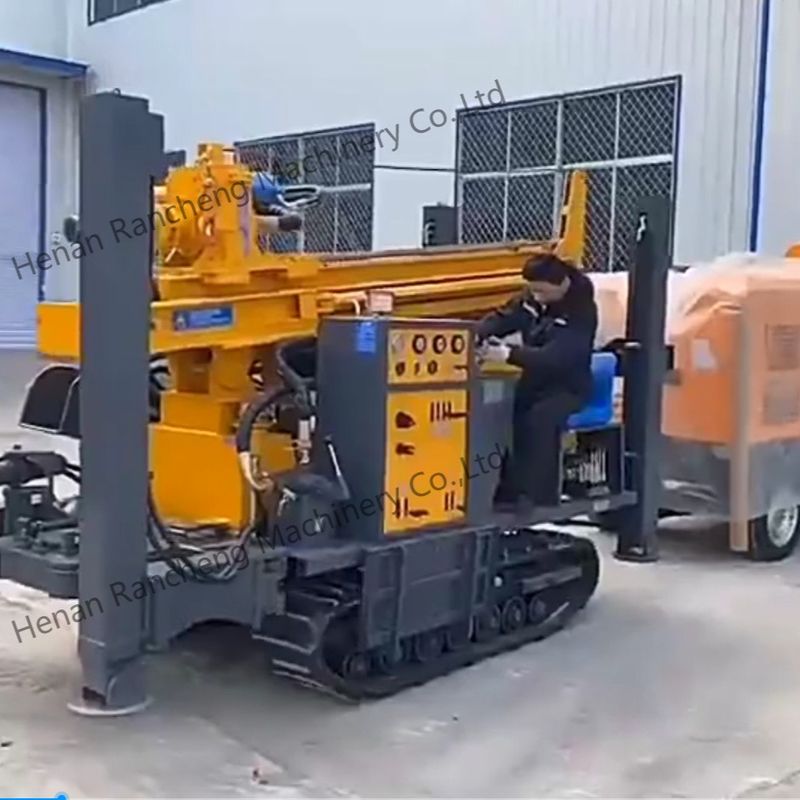

Machine Pictures
