| Attribute | Value |
|---|---|
| Name | Water Well Drilling Machine |
| Model | RCF800C |
| Geology Drilled | All kind |
| Drill System and Operation | Hydraulic |
| Max Hole Depth | 800m |
| Hole Diameter | 140-500m |
| Diesel Engine | 154KW Cummins |
| Dimension | 6300×2300×2650mm |

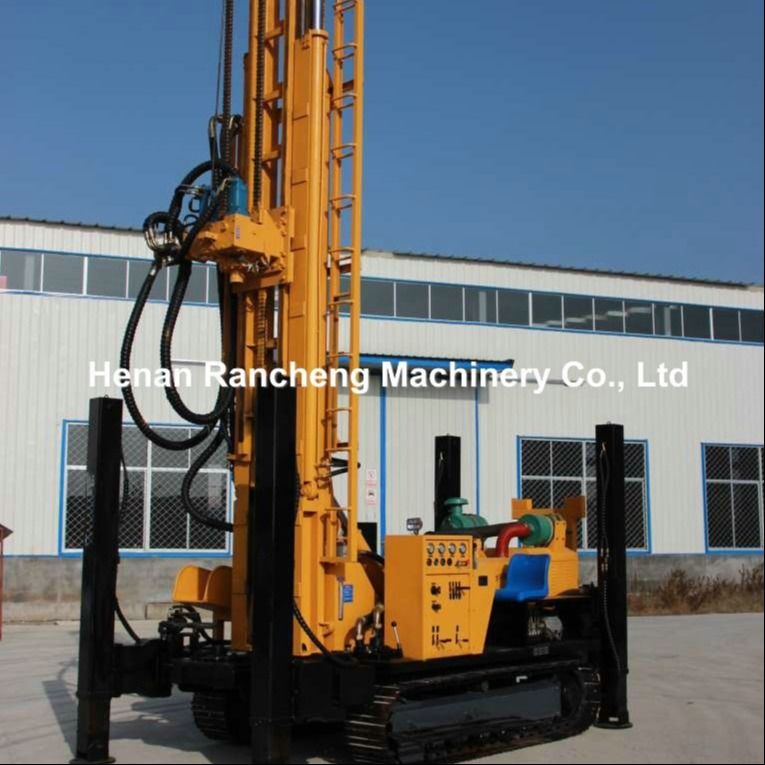

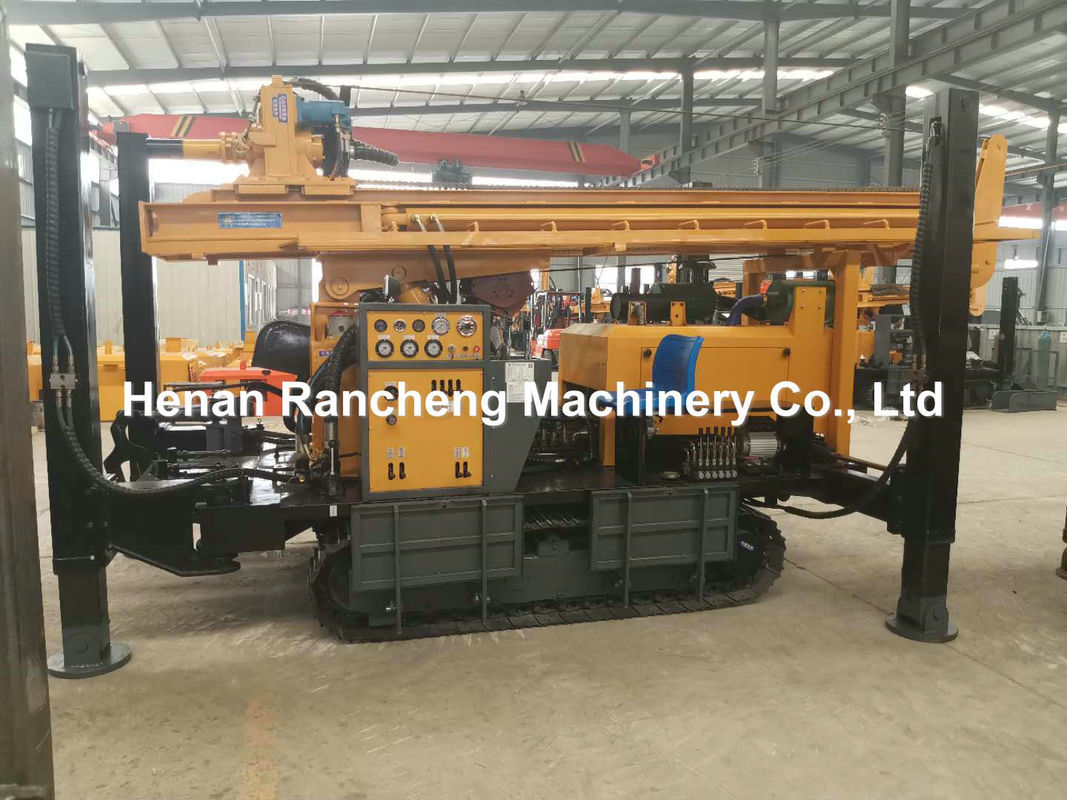

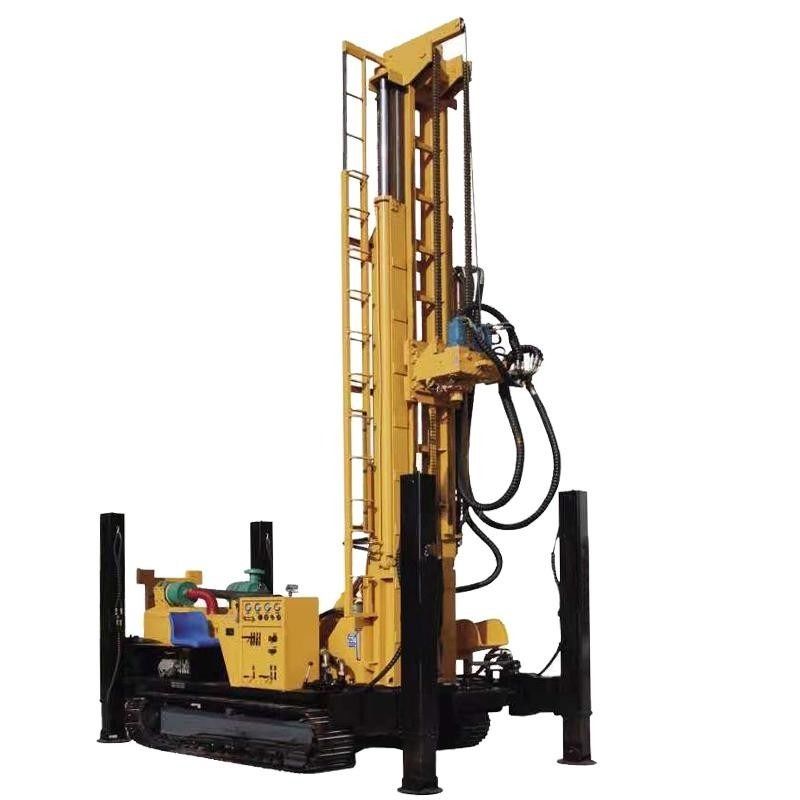

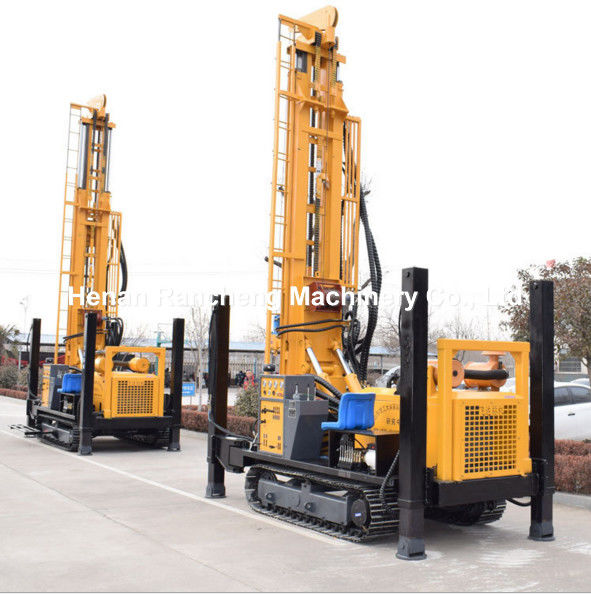

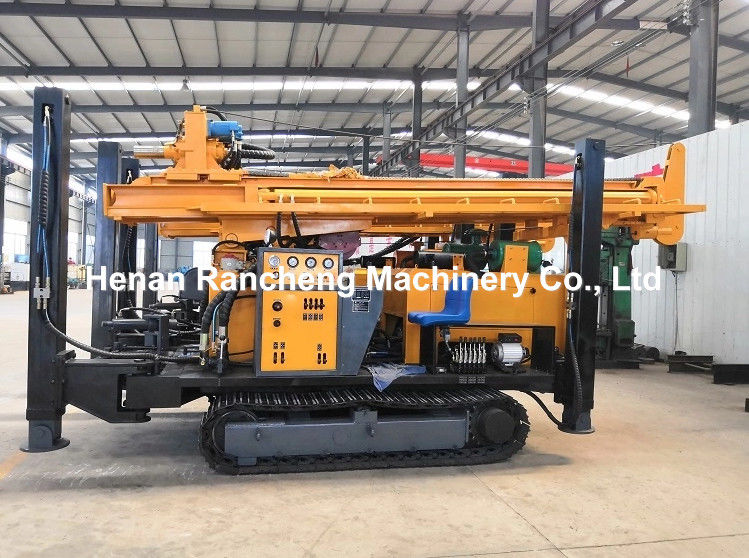

The RCF800C water well drill rig, with its dual-pump intelligent hydraulic technology, can sense changes in operating conditions in real time and automatically optimize power distribution, minimizing energy consumption while maintaining industry-leading drilling speeds. This rig utilizes a high-strength composite armored chassis and fully hydraulic crawler tracks, offering exceptional durability and superior navigability in complex terrain. It is particularly well-suited for mineral exploration and deep water well construction in extreme geological conditions.
When equipped with a high-performance air compressor system, this drill rig can achieve a drilling speed of 20-25 meters per hour in hard rock formations. Its exceptional deep drilling capability and stability make it the ultimate solution for professional drilling teams engaged in deep water well operations.
| Model | RC800C |
|---|---|
| Drilling way | Both mud pump drilling and air DTH drilling |
| Geology drilled | All kind |
| Drill system and operation | Hydraulic |
| Diesel engine | 154KW Cummins |
| Max hole depth | 800m |
| Hole diameter | 140-500mm |
| Air consumption | 17-42m³/min |
| Length of drilling pipe | 1m/2m/3m/6m |
| Diameter of drilling pipe | 102/108/114mm |
| Total Weight | 13ton |
| Dimension (L * W * H) | 6300×2300×2650mm |
