Name: RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200C
Availability: InStock

घर > उत्पादों > पानी के कुएं की ड्रिलिंग मशीन >

RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales

deep hole crawler drilling rig

water well drilling machine with warranty

RCF200C crawler drilling rig

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

RanCheng

प्रमाणन:

CE,ISO 9001:2000

मॉडल संख्या:

RCF200C

हमसे संपर्क करें

अनुरोध कथन

उत्पाद का विवरण

नमूना:

RCF200C

पाइप की लंबाई:

3मी

बोर की गहराई:

200 मीटर

पाइप का व्यास:

76मिमी/89मिमी

उठाने का बल:

15टी

डीज़ल इंजन:

58 किलोवाट युचाई

प्रमुखता देना:

deep hole crawler drilling rig

water well drilling machine with warranty

RCF200C crawler drilling rig

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

मूल्य

विनिमय योग्य

पैकेजिंग विवरण

इसे एक 20" कंटेनर द्वारा भेजा जा सकता है

प्रसव के समय

15 कार्य दिवस

भुगतान शर्तें

टी/टी, वेस्टर्न यूनियन

आपूर्ति की क्षमता

प्रति माह 100 सेट

संबंधित उत्पाद

वीडियो

छोटे हाइड्रोलिक ड्रिल सिलेंडर 160 मीटर गहराई जल खुदाई मशीन क्रॉलर घुड़सवार पानी कुएं ड्रिलिंग रिग

सबसे अच्छी कीमत पाएं

वीडियो

1000 मीटर गहरी जल कुएं ड्रिलिंग मशीन 105mm - 800mm Dia 179KW गहरी कुएं ड्रिलिंग रिग

सबसे अच्छी कीमत पाएं

वीडियो

हाइड्रोलिक वायवीय जल कुंआ ड्रिलिंग उपकरण 500 मीटर बोर गहराई 118KW इंजन

सबसे अच्छी कीमत पाएं

वीडियो

800 मीटर गहराई जल कुएं ड्रिलिंग उपकरण 153KW इंजन 140mm - 500mm व्यास

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales

The RCF200C deep water well drilling rig is an independently developed product of our company. As a new-generation DTH drilling rig, it is equipped with enhanced air power to deliver a faster drilling speed and higher working efficiency. Adopting advanced hydraulic technology and the latest structural design, this drilling rig features low energy consumption, large rotary torque and flexible hole deflection. It is widely applicable for resource exploration, hydrological wells, civil water supply, agricultural irrigation and other drilling projects.

Manufactured with high-quality raw materials, the machine boasts a compact and exquisite structure. It ensures stable operation, low failure rate, excellent durability and superior cost performance. Verified by the market, our drilling rigs have gained widespread recognition and positive feedback from global customers.

Technical Specifications

Parameter	Specification
Model	RCF200C
Bore diameter (Hammer)	90-350mm
Bore depth	200m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	76mm/89mm
Pipe length	3m
Push force	4T
Lifting force	12T
Lifting speed	2.5m/min
Feeding speed	0.5-5m/min
Fast lifting speed	18m/min
Fast feeding speed	35m/min
Max torque of the rotary	3500-4800Nm
Rotary speed	45-70r/min
Mud Pump flow	250L/min (option)
High hydraulic leg	1.4m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension (L×W×H)	4000×1800×2300mm
Weight	5000Kg
Diesel engine	58KW Yuchai

Key Advantages

1. Powerful Performance, Exceptional Efficiency
Featuring a newly developed, proprietary down-the-hole (DTH) drilling configuration, this machine combines upgraded pneumatic power with advanced hydraulic technology. It boasts low energy consumption, high rotational torque, flexible hole positioning, and rapid drilling speeds, making it ideally suited for a wide range of engineering applications—including resource exploration, civil water wells, and agricultural irrigation.

2. Precision Engineering, Stable and Durable
Constructed from premium-grade raw materials, the machine features a compact and streamlined structure. It operates smoothly with a low failure rate; its robust chassis ensures exceptional durability, allowing for prolonged, continuous operation without prone to mechanical issues.

3. High Cost-Effectiveness, Excellent Market Reputation
Offering outstanding overall economic value and a superior price-performance ratio, this equipment has been rigorously field-tested across global markets. It has garnered widespread recognition and positive reviews from a vast base of satisfied customers.

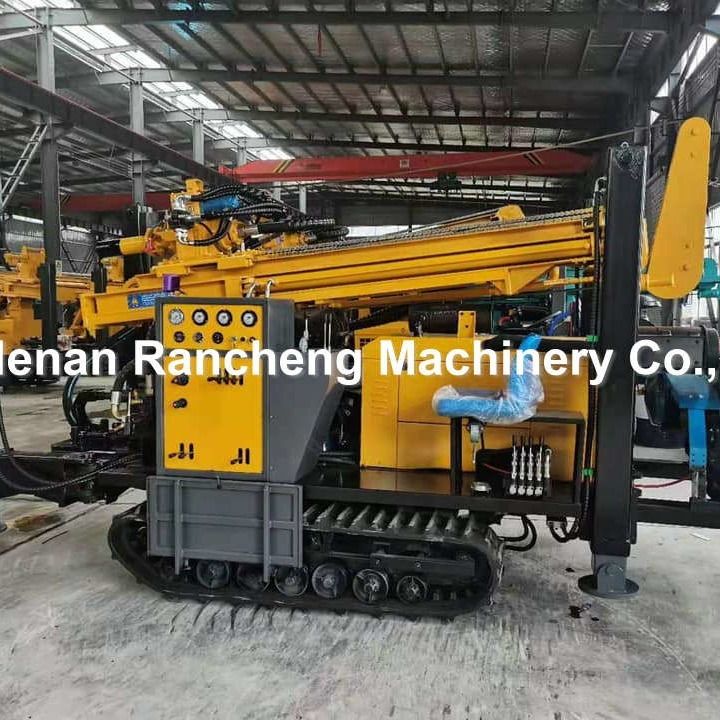

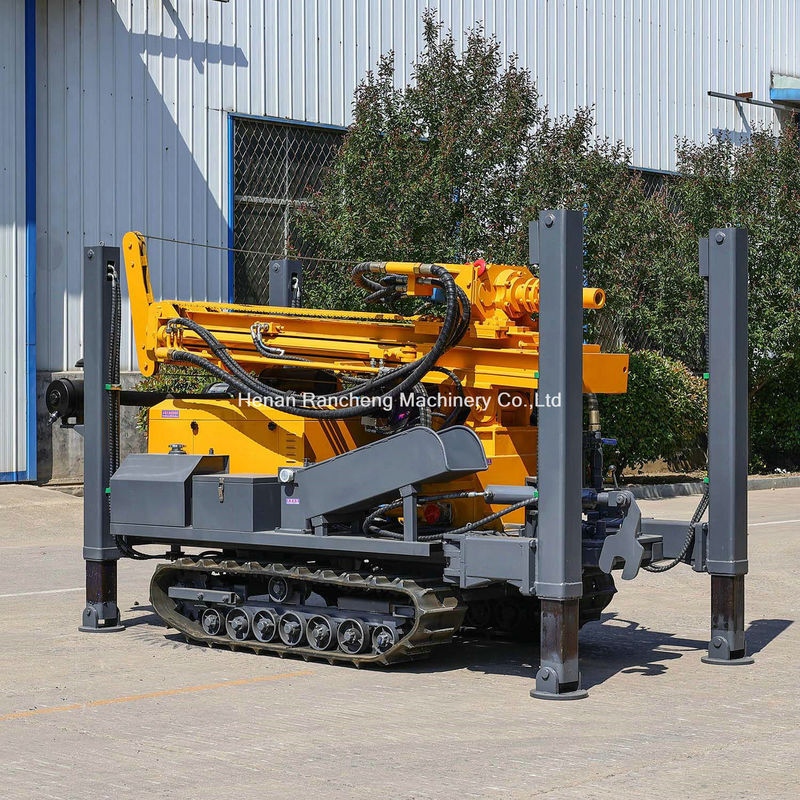

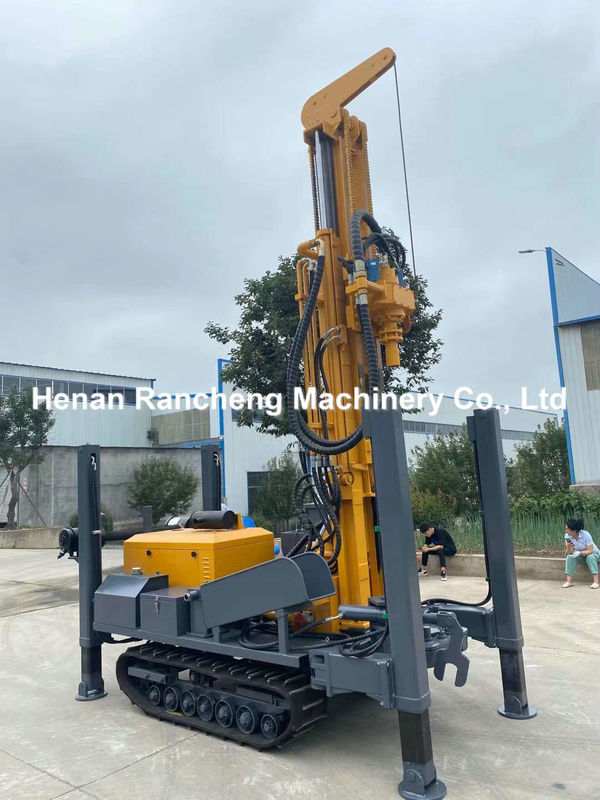

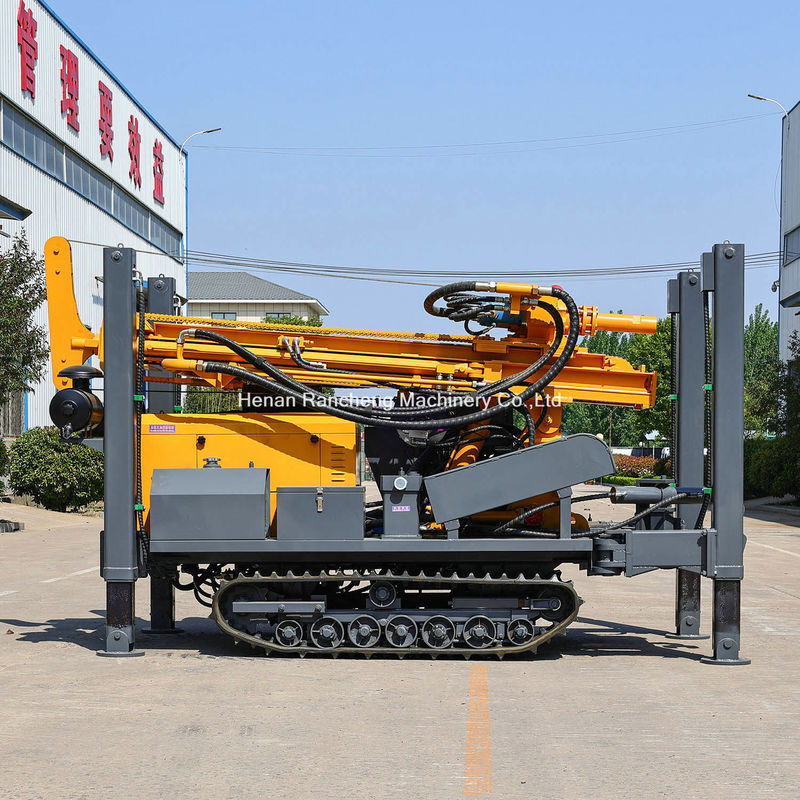

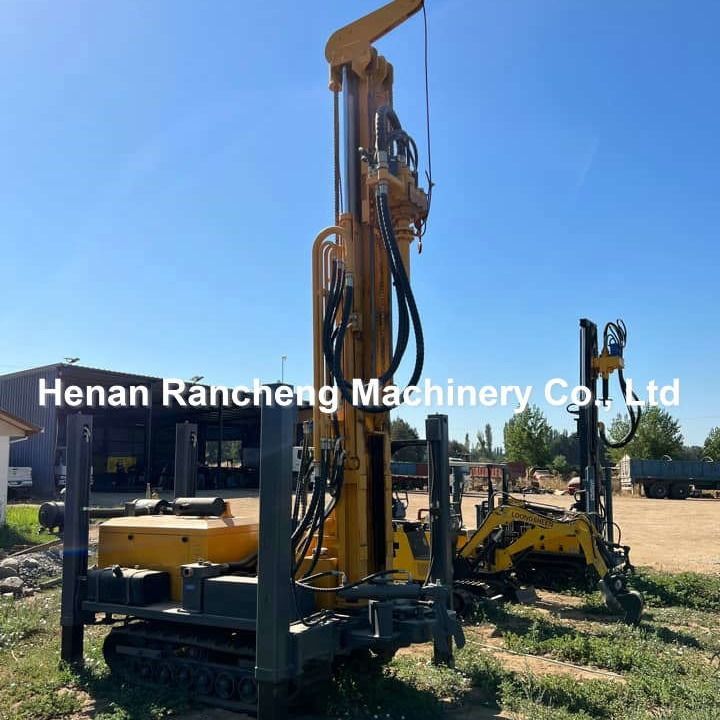

Product Images
